| Business Type | Manufacturer, Exporter, Supplier |
| Compressor Type | Fixed Speed Rotary Screw |
| Voltage | 415V (3 Phase) |
| Frequency | 50 Hz |
| Click to view more | |
Product Details
Model
SJ RF220
Manufacturer
Sarv Jagat Corporation
Power Rating
220 HP
Pressure Rating
13 Bar (190 PSI)
Air Delivery
~18 M3/min (650 CFM)
Stage
Single Stage
Technology
Rotary Screw Mechanism
Cooling Type
Air Cooled

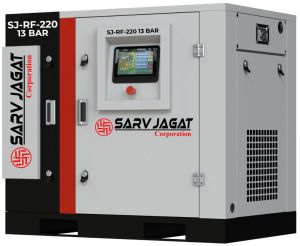

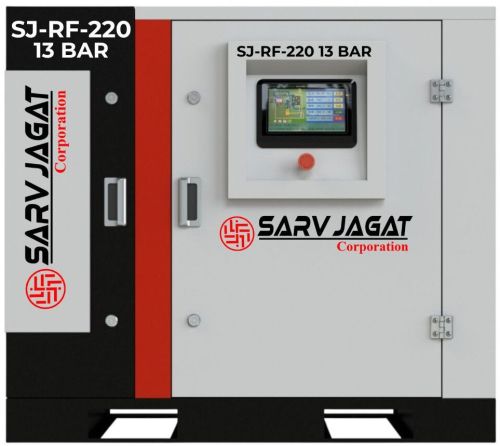

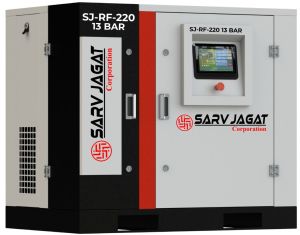

SJ RF220 Fixed Screw Air Compressor 220 HP 13 Bar Single Stage Rotary Screw
The SJ RF220 220 HP 13 Bar Screw Air Compressor is designed for ultra-heavy high-pressure industrial applications where elevated pressure is required for large-scale equipment and specialized operations. It ensures stable and reliable performance under extreme industrial conditions.
At 13 bar operating pressure, this compressor delivers 706 CFM (19.99 m³/min), making it suitable for high-pressure industrial systems.
Key Features:
-
High-pressure output up to 13 bar
-
Stable airflow delivery under extreme load conditions
-
Continuous-duty capability for uninterrupted plant operation
-
Heavy-duty construction for harsh industrial environments
-
Reliable performance for high-pressure applications
Applications (13 Bar – Ultra Heavy High Pressure Systems):
-
Mining and drilling operations (DTH drilling rigs, rotary drilling systems)
-
Large-scale sandblasting and surface preparation plants
-
Oil & gas pipeline testing and air pigging systems
-
Heavy construction equipment (pneumatic breakers, rock drills)
-
Industrial cleaning and high-pressure air systems
Technical Specifications:
-
Model: SJ RF220
-
Power: 220 HP / 160 kW
-
Capacity: 706 CFM / 19.99 m³/min
-
Pressure: 13 Bar / 190 PSI
-
Compressor Type: Fixed Speed Rotary Screw
Application Suitability:
This 13 bar configuration is ideal for ultra-heavy high-pressure industrial operations, particularly in mining, oil & gas, and large infrastructure projects.
