Product Details
Model
SJ RF60
Manufacturer
Sarv Jagat Corporation
Power Rating
60 HP
Pressure Rating
10 Bar (145 PSI)
Air Delivery
~7.0 M³/min (247 CFM)
Stage
Single Stage
Technology
Rotary Screw Mechanism
Cooling Type
Air Cooled

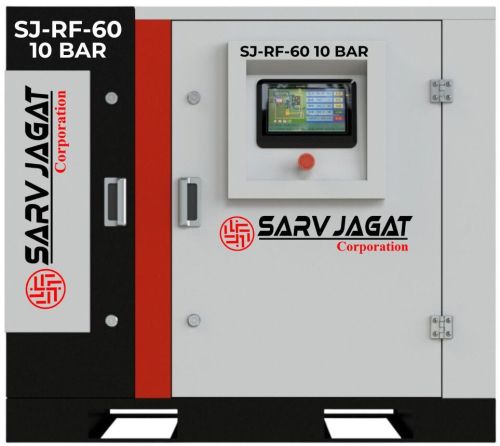

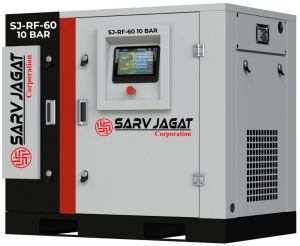

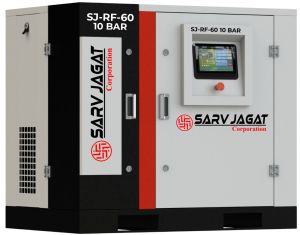

SJ RF60 Fixed Screw Air Compressor 60 HP 10 Bar Single Stage Rotary Screw
The SJ RF60 60 HP 10 Bar Screw Air Compressor is engineered for industrial applications requiring both high airflow and stable pressure for precision manufacturing and automation systems. It is suitable for large-scale production environments where consistent pressure is essential for product quality and process efficiency.
At 10 bar operating pressure, this model delivers 247 CFM (6.99 m³/min), supporting high-demand machinery and automated industrial systems.
Key Features:
-
Reliable compressed air delivery at 10 bar pressure
-
High airflow combined with pressure stability for precision systems
-
Continuous-duty design for heavy industrial operations
-
Reduced pressure fluctuations in large air networks
-
Durable construction for demanding industrial environments
Applications (10 Bar – Precision Heavy Industrial Systems):
-
CNC and VMC machining clusters (tool clamping, air purge, chip evacuation)
-
Automotive manufacturing plants and robotic assembly lines
-
Powder coating plants and industrial painting booths
-
High-speed packaging and bottling lines
-
Electronics and PCB manufacturing with pneumatic control systems
Technical Specifications:
-
Model: SJ RF60
-
Power: 60 HP / 45 kW
-
Capacity: 247 CFM / 6.99 m³/min
-
Pressure: 10 Bar / 145 PSI
-
Compressor Type: Fixed Speed Rotary Screw
Application Suitability:
This 10 bar configuration is ideal for industries where pressure stability directly impacts machining accuracy, automation efficiency, and product quality.
