2.80 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Compressor Type | Oil Injected Rotary Screw |
| Phase | Three Phase |
| Air Flow Capacity | 49 CFM / 1.39 M³/min |
| Click to view more | |
Product Details
Cooling Method
Air Cooled
Frequency
50Hz
Motor Power
15 HP / 11 KW
Manufacturer
Sarv Jagat Corporation
Model Name
SJ RV15
Compressor Technology
Variable Frequency Drive (VFD/VSD)
Compressor Stage
Single Stage
Working Pressure
10 BAR / 145 PSI
Voltage Requirement
415 V AC

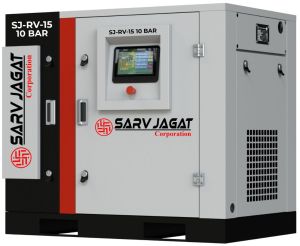

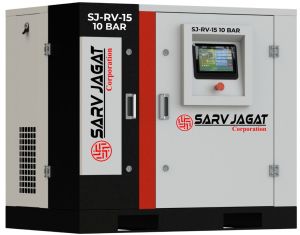

SJ RV15 VFD Screw Air Compressor 15 HP 10 Bar Single Stage Rotary Screw
The SJ RV15 15 HP 10 Bar VFD Screw Air Compressor is engineered for precision industrial applications requiring stable pressure and dynamic airflow control. The VFD system continuously adjusts motor speed to match system demand, ensuring efficient performance.
At 10 bar operating pressure, it delivers 49 CFM (1.39 m³/min), suitable for medium-scale machinery requiring higher pressure stability.
Key Features:
-
Dynamic airflow adjustment for varying load conditions
-
Improved pressure stability for precision applications
-
Reduced energy consumption during partial load operation
-
Lower wear and tear due to reduced start-stop cycles
-
Enhanced lifecycle efficiency
Applications (10 Bar – Precision Variable Systems):
-
CNC and VMC machines (tool clamping, air purge)
-
Automotive workshops (painting, pneumatic tools)
-
Powder coating and spray painting systems
-
Pneumatic control panels and automation systems
-
Small production lines with batch operations
Technical Specifications:
-
Model: SJ RV15
-
Power: 15 HP / 11 kW
-
Capacity: 49 CFM / 1.39 m³/min
-
Pressure: 10 Bar / 145 PSI
-
Technology: VFD Controlled Rotary Screw Compressor
Application Suitability:
Ideal for applications where pressure stability is critical but airflow demand varies during operation cycles.
Looking for "15 HP 10 Bar SJ Variable Speed Screw Air Compressor" ?
