3.20 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Compressor Type | Oil Injected Rotary Screw |
| Phase | Three Phase |
| Air Flow Capacity | 72 CFM / 2.04 M³/min |
| Click to view more | |
Product Details
Cooling Method
Air Cooled
Frequency
50Hz
Motor Power
20 HP / 15 KW
Manufacturer
Sarv Jagat Corporation
Model Name
SJ RV20
Compressor Technology
Variable Frequency Drive (VFD/VSD)
Compressor Stage
Single Stage
Working Pressure
10 BAR / 145 PSI
Voltage Requirement
415 V AC

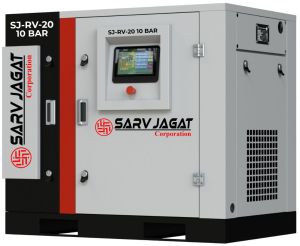

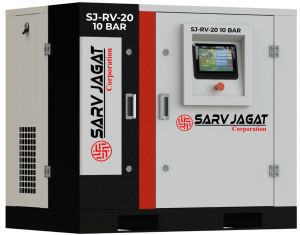

SJ RV20 VFD Screw Air Compressor 20 HP 10 Bar Single Stage Rotary Screw
The SJ RV20 20 HP 10 Bar VFD Screw Air Compressor is engineered for precision industrial applications requiring stable pressure and dynamic airflow control. The VFD system continuously adjusts motor speed to match system demand, improving efficiency and system performance.
At 10 bar operating pressure, it delivers 71 CFM (2.01 m³/min), supporting medium-scale production systems and precision equipment.
Key Features:
-
Dynamic airflow adjustment for varying load conditions
-
Improved pressure stability for precision operations
-
Reduced energy consumption during partial load operation
-
Lower wear due to reduced start-stop cycles
-
Enhanced lifecycle efficiency
Applications (10 Bar – Precision Variable Systems):
-
CNC and VMC machines (tool clamping, air purge systems)
-
Automotive workshops (spray painting, pneumatic tools)
-
Powder coating and surface finishing systems
-
Pneumatic automation and control systems
-
Packaging machines (filling, sealing, labeling lines)
Technical Specifications:
-
Model: SJ RV20
-
Power: 20 HP / 15 kW
-
Capacity: 71 CFM / 2.01 m³/min
-
Pressure: 10 Bar / 145 PSI
-
Technology: VFD Controlled Rotary Screw Compressor
Application Suitability:
Ideal for applications where pressure stability is critical but air demand fluctuates, especially in machining and coating systems.
Looking for "20 HP 10 Bar SJ Variable Speed Screw Air Compressor" ?
