| Business Type | Manufacturer, Exporter, Supplier |
| Frequency | 50Hz |
| Motor Power | 150 HP / 110 KW |
| Manufacturer | Sarv Jagat Corporation |
| Click to view more | |
Product Details
Model Name
SJ RV150
Compressor Technology
Variable Frequency Drive (VFD/VSD)
Compressor Stage
Single Stage
Working Pressure
13 BAR / 188 PSI
Air Flow Capacity
898 CFM / 25.42 M³/min
Compressor Type
Oil Injected Rotary Screw
Voltage Requirement
415 V AC
Phase
Three Phase
Cooling Method
Air Cooled

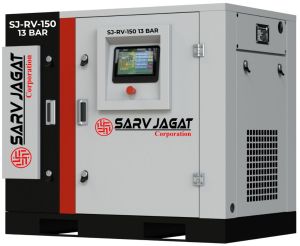

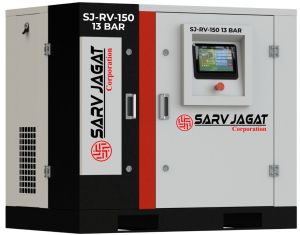

SJ RV150 VFD Screw Air Compressor 150 HP 13 Bar Single Stage Rotary Screw
The SJ RV150 150 HP 13 Bar VFD Screw Air Compressor is designed for high-pressure industrial applications where air demand fluctuates across heavy-duty systems. It combines high-pressure capability with energy-efficient variable speed control to deliver optimized performance.
At 13 bar operating pressure, this compressor delivers 516 CFM (14.61 m³/min), making it suitable for demanding industrial environments.
Key Features:
-
High-pressure output with variable speed control
-
Energy-efficient operation under fluctuating load
-
Stable pressure delivery for heavy-duty applications
-
Reduced electrical peak load during startup
-
Lower lifecycle operating cost
Applications (13 Bar – Heavy Variable High Pressure Systems):
-
Sandblasting and surface preparation plants
-
Mining and drilling operations (pneumatic drilling rigs)
-
Cement plants (pneumatic conveying and cleaning systems)
-
Construction equipment (jackhammers, breakers)
-
Pipeline testing and industrial cleaning systems
Technical Specifications:
-
Model: SJ RV150
-
Power: 150 HP / 110 kW
-
Capacity: 516 CFM / 14.61 m³/min
-
Pressure: 13 Bar / 190 PSI
-
Technology: VFD Controlled Rotary Screw Compressor
Application Suitability:
Best suited for high-pressure industrial applications with fluctuating demand, especially in heavy and process industries.
Looking for "150 HP 13 Bar SJ Variable Speed Screw Air Compressor" ?
