| Business Type | Manufacturer, Exporter, Supplier |
| Frequency | 50Hz |
| Motor Power | 220 HP / 160 KW |
| Manufacturer | Sarv Jagat Corporation |
| Click to view more | |
Product Details
Model Name
SJ RV220
Compressor Technology
Variable Frequency Drive (VFD/VSD)
Compressor Stage
Single Stage
Working Pressure
13 BAR / 188 PSI
Air Flow Capacity
908 CFM / 25.70 M³/min
Compressor Type
Oil Injected Rotary Screw
Voltage Requirement
415 V AC
Phase
Three Phase
Cooling Method
Air Cooled

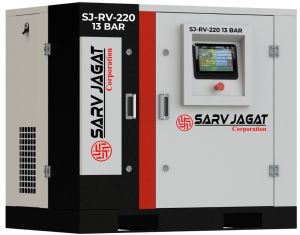

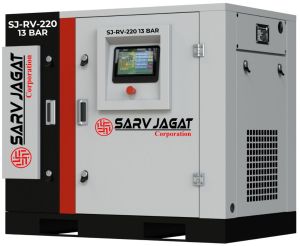

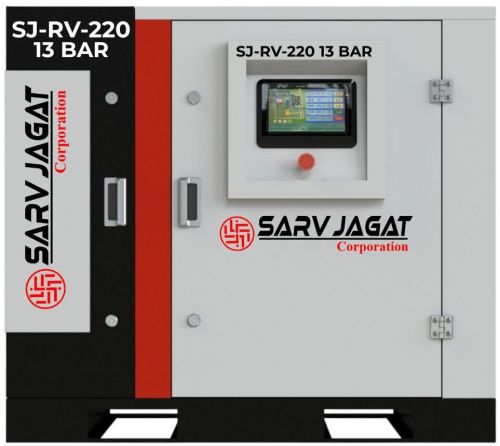

SJ RV220 VFD Screw Air Compressor 220 HP 13 Bar Single Stage Rotary Screw
The SJ RV220 220 HP 13 Bar VFD Screw Air Compressor is designed for ultra-heavy high-pressure industrial applications where air demand fluctuates across critical systems. It combines high-pressure capability with energy-efficient variable speed control for optimized performance.
At 13 bar operating pressure, this compressor delivers 706 CFM (19.99 m³/min), making it suitable for extreme industrial environments.
Key Features:
-
High-pressure output with variable speed control
-
Energy-efficient operation under fluctuating load
-
Stable pressure delivery for heavy-duty applications
-
Reduced electrical peak load during startup
-
Lower lifecycle operating cost
Applications (13 Bar – Ultra Heavy High Pressure Systems)
-
Mining and drilling operations (DTH drilling rigs)
-
Sandblasting and large-scale surface preparation plants
-
Oil & gas pipeline testing and air pigging systems
-
Heavy construction equipment (rock drills, breakers)
-
Industrial cleaning and high-pressure air systems
Technical Specifications:
-
Model: SJ RV220
-
Power: 220 HP / 160 kW
-
Capacity: 706 CFM / 19.99 m³/min
-
Pressure: 13 Bar / 190 PSI
-
Technology: VFD Controlled Rotary Screw Compressor
Application Suitability:
Best suited for ultra-heavy high-pressure industrial operations with fluctuating demand, especially in mining, oil & gas, and infrastructure sectors.
