5.50 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Compressor Type | Oil Injected Rotary Screw |
| Phase | Three Phase |
| Air Flow Capacity | 107 CFM / 3.03 M³/min |
| Click to view more | |
Product Details
Cooling Method
Air Cooled
Frequency
50Hz
Motor Power
50 HP / 37 KW
Manufacturer
Sarv Jagat Corporation
Model Name
SJ RV50
Compressor Technology
Variable Frequency Drive (VFD/VSD)
Compressor Stage
Single Stage
Working Pressure
10 BAR / 145 PSI
Voltage Requirement
415 V AC

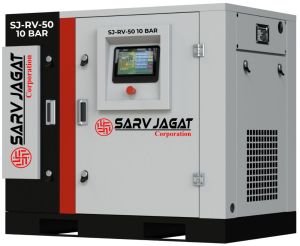

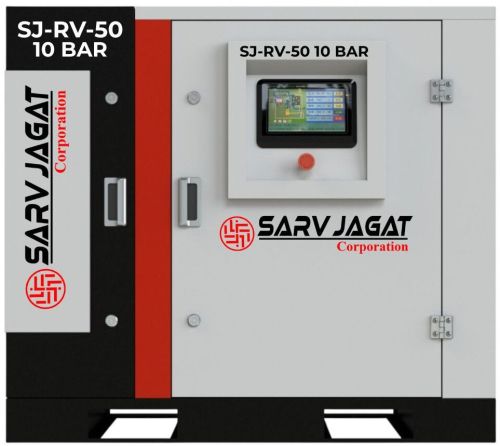

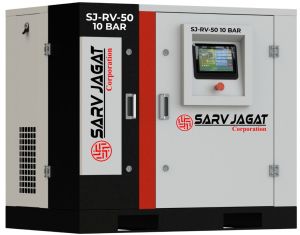

SJ RV50 VFD Screw Air Compressor 50 HP 10 Bar Single Stage Rotary Screw
The SJ RV50 50 HP 10 Bar VFD Screw Air Compressor is engineered for industrial systems requiring both high airflow and stable pressure with dynamic load variation. The VFD continuously adjusts motor speed to maintain pressure stability while optimizing energy consumption.
At 10 bar operating pressure, this compressor delivers 191 CFM (5.41 m³/min), supporting large-scale precision machinery and automation systems.
Key Features:
-
Dynamic airflow adjustment for varying industrial loads
-
Improved pressure stability for precision processes
-
Reduced energy consumption during partial load operation
-
Lower wear due to reduced start-stop cycles
-
Efficient performance in continuous production environments
Applications (10 Bar – Precision Variable Plant Systems):
-
CNC and VMC machining clusters (tool clamping, air purge, chip evacuation)
-
Automotive manufacturing plants (robotic assembly and painting lines)
-
Powder coating and industrial finishing plants
-
High-speed packaging and bottling lines
-
Pneumatic automation systems across production units
Technical Specifications:
-
Model: SJ RV50
-
Power: 50 HP / 37 kW
-
Capacity: 191 CFM / 5.41 m³/min
-
Pressure: 10 Bar / 145 PSI
-
Technology: VFD Controlled Rotary Screw Compressor
Application Suitability:
Ideal for systems where pressure stability directly affects machining, coating, and automation performance, while load fluctuates across production cycles.
