| Business Type | Manufacturer, Exporter, Supplier |
| Compressor Type | Fixed Speed Rotary Screw |
| Voltage | 415V (3 Phase) |
| Frequency | 50 Hz |
| Click to view more | |
Product Details
Model
SJ RF100
Manufacturer
Sarv Jagat Corporation
Power Rating
100 HP
Pressure Rating
13 Bar (≈188.5 PSI)
Air Delivery
≈14 M³/min (≈490 CFM)
Stage
Single Stage
Technology
Rotary Screw Mechanism
Cooling Type
Air Cooled
Product Description
The SJ RF100 – 10 BAR Fixed Speed Rotary Screw Air Compressor (100 HP) manufactured by Sarv Jagat Corporation is a high-performance industrial air compressor designed for large-scale manufacturing units requiring a balance of high airflow and stable pressure output. Built with advanced single-stage rotary screw technology, this compressor ensures continuous, pulse-free compressed air supply for precision-driven industrial applications.
This model is widely used in CNC machining clusters, automotive production lines, powder coating plants, packaging systems, and automated manufacturing setups, where consistent air pressure and reliability directly impact production quality and efficiency.
At an operating pressure of 10 bar (≈145 PSI), the compressor delivers approximately 14 m³/min (≈490 CFM) air output, making it ideal for heavy-duty continuous industrial operations.

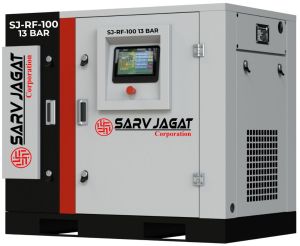

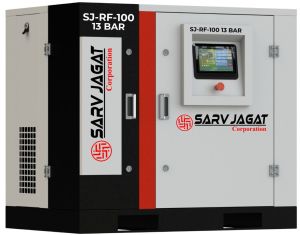

SJ RF100 Fixed Screw Air Compressor 100 HP 13 Bar Single Stage Rotary Screw
The SJ RF100 100 HP 13 Bar Screw Air Compressor is designed for high-pressure industrial applications where elevated pressure is required for heavy-duty tools and specialized processes. It ensures reliable performance under demanding operational conditions.
At 13 bar operating pressure, this model delivers 346 CFM (9.79 m³/min), making it suitable for industries where pressure requirement is critical.
Key Features:
-
High-pressure output up to 13 bar
-
Stable airflow delivery under heavy-duty load conditions
-
Continuous-duty capability for uninterrupted operation
-
Robust construction for harsh industrial environments
-
Reliable performance for high-pressure applications
Applications (13 Bar – Heavy Duty High Pressure Systems):
-
Sandblasting and abrasive blasting systems
-
Mining and drilling equipment (DTH drilling rigs, pneumatic drills)
-
Construction equipment (jackhammers, pneumatic breakers)
-
Pipeline pressure testing and industrial leak detection systems
-
Industrial cleaning and high-pressure air blowing systems
Technical Specifications:
-
Model: SJ RF100
-
Power: 100 HP / 75 kW
-
Capacity: 346 CFM / 9.79 m³/min
-
Pressure: 13 Bar / 190 PSI
-
Compressor Type: Fixed Speed Rotary Screw
Application Suitability:
This 13 bar configuration is ideal for high-pressure industrial operations, particularly where heavy-duty tools, blasting systems, and drilling equipment require elevated pressure levels.
