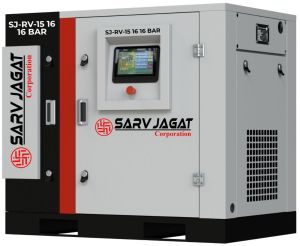

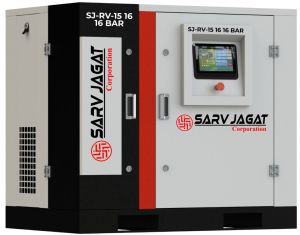

15 HP 16 Bar SJ Variable Speed Screw Air Compressor

The SJ RV15 15 HP 16 Bar VFD Screw Air Compressor is designed for high-pressure industrial applications where airflow demand is variable and precise pressure control is critical. Equipped with Variable Frequency Drive (VFD) technology, it dynamically adjusts motor speed based on real-time air consumption, ensuring energy-efficient operation and stable high-pressure output.

At 16 bar operating pressure, this compressor delivers 40 CFM, making it suitable for small-to-mid capacity fiber laser cutting systems and precision high-pressure industrial processes.

• Variable speed operation based on real-time demand

• High-pressure output up to 16 bar for process-critical applications

• Stable pressure band control during fluctuating load cycles

• Energy savings through demand-based motor speed regulation

• Soft start reduces electrical load and mechanical stress

• Designed for continuous-duty industrial operation

• Used in:

  • sheet metal fabrication industries

  • precision fabrication workshops

• Machines:

  • 2 kW to 6 kW fiber laser cutting systems

• Role of compressed air:

  • acts as assist gas to remove molten metal

  • improves cutting quality and edge finish

  • protects laser optics and stabilizes process

• Engineering requirement:

  • 16 bar is industry standard for efficient laser cutting performance

• Applications:

  • small to medium fabrication plants

  • batch production cutting

• Machines:

  • CNC laser cutting tables

  • automated sheet processing systems

• Used in laser cutting instead of nitrogen gas

• Benefits:

  • eliminates cylinder cost

  • reduces operating expenses significantly

  • ensures continuous production without gas dependency

• Requirement:

  • clean, dry, oil-free compressed air

• Used in:

  • beverage manufacturing plants

  • FMCG packaging industries

• Application:

  • pre-blow stage air

  • pneumatic control systems

• Constraint:

  • final blowing requires 25–40 bar (booster required)

  • 16 bar used in intermediate stages

• Applications:

  • high-force clamping systems

  • precision air-jet cleaning

  • controlled pneumatic actuators

• Industries:

  • electronics manufacturing

  • precision engineering

• Leak testing

• Pressure testing benches

• Calibration systems

• Model: SJ RV15

• Power: 15 HP / 11 kW

• Capacity: 40 CFM

• Pressure: 16 Bar / 232 PSI

• Technology: VFD Controlled Rotary Screw Compressor

This configuration is suitable for:

• fiber laser cutting systems (2–6 kW range)

• high-pressure precision applications with fluctuating demand

• laser fabrication and process-based industries
