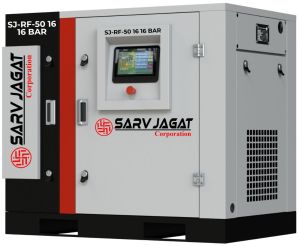

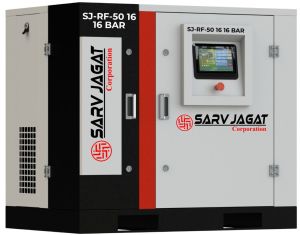

50 HP 16 Bar SJ Screw Air Compressor

The SJ RF50 50 HP 16 Bar Screw Air Compressor is engineered for high-pressure industrial applications where continuous and stable compressed air is required for process-critical operations. Built with single-stage rotary screw technology, it delivers reliable high-pressure airflow suitable for heavy-duty manufacturing and precision systems.

At 16 bar operating pressure, this compressor delivers 134 CFM (3.79 m³/min) as per standard performance data , making it suitable for high-capacity laser cutting systems and multi-machine industrial applications.

• High-pressure output up to 16 bar for specialized industrial use

• Continuous-duty rotary screw design ensuring stable airflow

• Suitable for high-load and process-critical applications

• Heavy-duty construction for 24/7 industrial operation

• Compatible with full air treatment system (dryer + multi-stage filtration mandatory)

• Used in:

  • sheet metal fabrication industries

  • heavy fabrication plants

• Machines:

  • 6 kW to 12 kW fiber laser cutting systems

• Function of compressed air:

  • removes molten metal from cutting zone

  • improves cutting speed and edge quality

  • prevents slag formation and oxidation

• Engineering requirement:

  • 16 bar pressure is required for high-power lasers to maintain cutting efficiency and quality

• Flow relevance:

  • Industrial laser systems (>6 kW) require high airflow range (140–350 CFM depending on load)

→ RF50 sits in high-capacity laser cutting segment

• Fabrication units running:

  • multiple laser cutting machines

  • continuous production lines

• Application:

  • centralized compressed air supply

  • load distribution across machines

• Compressed air used instead of nitrogen cylinders

• Benefits:

  • eliminates recurring gas cost

  • reduces dependency on external supply

  • improves operational economics

• Requirement:

  • clean, dry, oil-free air (critical for optics protection)

• High-speed production environments:

  • sheet cutting

  • structural fabrication

  • automated cutting systems

• Industries:

  • automotive components

  • heavy engineering

  • metal processing

• Used in:

  • beverage manufacturing

  • FMCG packaging plants

• Function:

  • pre-blow stage

  • actuator and control air

• Engineering constraint:

  • final blow requires 25–40 bar booster system

  • 16 bar used in intermediate air stages

• Applications:

  • high-force actuators

  • clamping systems

  • industrial air-jet cleaning

• Used in:

  • automotive manufacturing

  • precision engineering industries

• Model: SJ RF50

• Power: 50 HP / 37 kW

• Capacity: 134 CFM / 3.79 m³/min

• Pressure: 16 Bar / 232 PSI

• Compressor Type: Fixed Speed Rotary Screw

This configuration is suitable for:

• high-power fiber laser cutting systems (6–12 kW range)

• multi-machine laser fabrication setups

• high-pressure industrial process applications

Not suitable for general-purpose compressed air systems.
