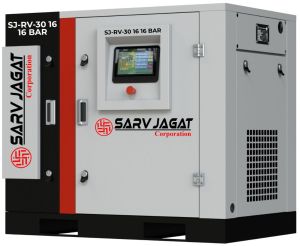

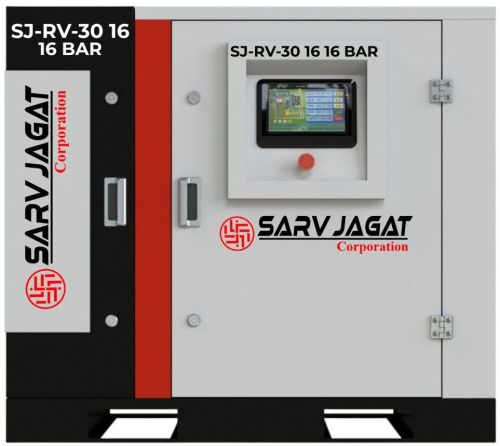

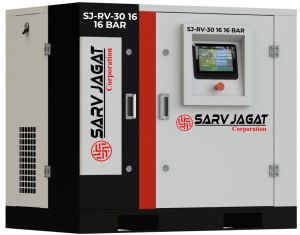

30 HP 16 Bar SJ Variable Speed Screw Air Compressor

The SJ RV30 30 HP 16 Bar VFD Screw Air Compressor is engineered for high-pressure industrial applications where airflow demand fluctuates and precise pressure control is critical. Equipped with Variable Frequency Drive (VFD) technology, it dynamically adjusts motor speed based on real-time air consumption, ensuring energy-efficient operation and stable high-pressure output.

At 16 bar operating pressure, this compressor delivers 75 CFM, making it suitable for medium-to-high capacity fiber laser cutting systems and process-critical industrial applications.

• Variable speed operation based on real-time demand

• High-pressure output up to 16 bar for specialized industrial applications

• Stable pressure band control during fluctuating load cycles

• Energy-efficient performance through demand-based motor speed control

• Soft start reduces electrical peak load and mechanical stress

• Designed for continuous-duty industrial operation

• Used in:

  • sheet metal fabrication plants

  • heavy fabrication workshops

• Machines:

  • 4 kW to 8 kW fiber laser cutting systems

• Function of compressed air:

  • expels molten metal from cutting zone

  • improves cutting speed and surface finish

  • prevents dross formation and improves edge quality

• Engineering requirement:

  • 16 bar is industry standard for high-pressure air cutting due to sufficient kinetic energy to remove molten material

• System requirement:

  • dry, oil-free, filtered air to protect laser optics and cutting head

• Applications:

  • continuous production cutting

  • medium to high volume fabrication

• Machines:

  • CNC fiber laser systems

  • automated sheet processing lines

• Requirement:

  • stable pressure + consistent airflow for uninterrupted operation

• Compressed air replaces nitrogen cylinders in cutting

• Benefits:

  • eliminates recurring gas cost

  • reduces operational expenses significantly

  • ensures continuous production

• Industry adoption:

  • widely used in fabrication industries to reduce OPEX

• Used in:

  • fabrication units operating multiple laser machines

• Application:

  • centralized compressed air supply

  • load variation across machines

• Used in:

  • beverage manufacturing plants

  • FMCG packaging industries

• Function:

  • pre-blow stage

  • actuator and control air

• Engineering constraint:

  • final blowing requires 25–40 bar booster system

  • 16 bar used in intermediate stages

• Applications:

  • high-force clamping

  • precision air-jet cleaning

  • heavy-duty pneumatic actuators

• Industries:

  • automotive manufacturing

  • precision engineering

• Leak testing systems

• Pressure testing benches

• Calibration systems

• Model: SJ RV30

• Power: 30 HP / 22 kW

• Capacity: 75 CFM

• Pressure: 16 Bar / 232 PSI

• Technology: VFD Controlled Rotary Screw Compressor

This configuration is suitable for:

• fiber laser cutting systems (4–8 kW range)

• medium-to-high capacity fabrication units with variable load

• high-pressure industrial process applications
