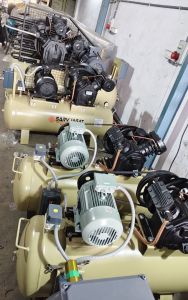

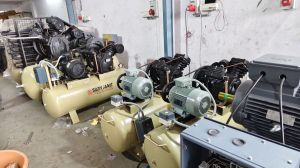

20 HP 25 Bar High Pressure Reciprocating Air Compressor

The SJ PM 15T 20 is a high-pressure reciprocating piston air compressor engineered for industrial applications requiring compressed air at elevated pressure levels up to 25 bar. Designed with a heavy-duty piston mechanism, this compressor is suitable for specialized industries where high-pressure air is required for process operations, testing systems, and controlled pneumatic applications.

Unlike standard workshop compressors, this model is built for process-driven high-pressure usage, where pressure is the primary requirement and airflow demand is moderate.

• Model: SJ PM 15T 20

• Type: High Pressure Reciprocating Piston Compressor

• Power: 20 HP

• Capacity: 50 CFM @ 25 Bar (350 PSI)

• Pressure: 25 Bar / 350 PSI

• Air Receiver: 500 Liters

The SJ PM 15T operates on a reciprocating compression cycle, where air is compressed through piston movement inside a cylinder.

• Air intake during suction stroke

• Compression through piston movement

• Delivery at high pressure (25 bar)

For high-pressure systems:

• Compression ratio increases significantly

• Heat generation is higher

• System requires robust mechanical design

Reciprocating compressors are preferred in such applications because:

• They can achieve high pressure efficiently

• Provide accurate pressure control

• Suitable for intermittent high-pressure demand systems

Used in:

• Mineral water plants

• Beverage manufacturing units

• FMCG packaging industries

Machines:

• PET blow molding machines

Role of compressor:

• Supplies high-pressure air for pre-blow stage

• Supports machine pneumatic systems

Engineering reality:

• Final bottle blowing requires 35–40 bar booster system

• 25 bar compressor works as:

  • pre-stage compression

  • base compressor before booster

Used in:

• Pressure testing benches

• Leak testing machines

• Component validation systems

Applications:

• pipeline testing

• vessel testing

• valve testing

Why this compressor:

• High-pressure requirement (20–25 bar range)

• Controlled airflow with stable pressure

Used for:

• High-pressure cleaning guns

• Specialized pneumatic tools

• Industrial air jet systems

Industries:

• heavy engineering

• maintenance operations

Note:
This is not general pneumatic tool usage — only high-pressure-specific tools.

Used in:

• injector testing

• component pressure testing

• leak detection systems

Why:

• Requires precise pressure control

• Not continuous flow application

Used in:

• high-pressure air cleaning

• dust removal systems

• surface preparation

Why:

• Higher pressure improves cleaning efficiency

Used for:

• air boosting before final compression

• intermediate stage systems

• Much higher pressure capability

• Designed for process applications

• Handles higher compression ratios

• Screw compressors are not efficient above ~13–16 bar

• Reciprocating compressors are preferred for:

  • 25 bar and above applications

  • testing and process systems

  • staged compression systems

Best suited for:

• PET pre-blow systems

• pressure testing applications

• industrial cleaning and high-pressure air systems

• process industries requiring 20–25 bar air

Not suitable for:

• general workshop use

• continuous factory air supply

• low-pressure applications

For proper operation:

• High-pressure air receiver (500 L as per model)

• Safety valves and pressure control system

• Moisture separator / filtration

• Proper cooling arrangement

• Higher mechanical stress due to high pressure

• Requires regular maintenance (valves, rings, lubrication)

• Higher temperature generation

• Noise level higher than screw compressors

The SJ PM 15T is positioned as:

• A high-pressure process compressor

• A support system for PET and testing applications

• A specialized industrial solution, not a general-purpose compressor

• 7–12 bar requirement → PT Series

• 13–16 bar requirement → Screw High Pressure

• 25 bar requirement → PM Series (this model)
