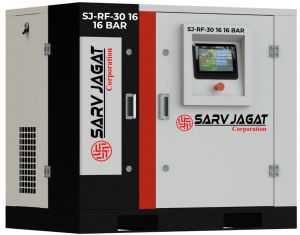

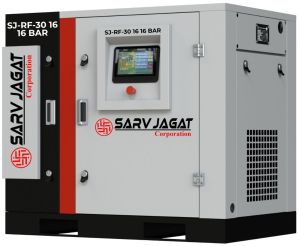

30 HP 16 Bar SJ Screw Air Compressor

The SJ RF30 30 HP 16 Bar Screw Air Compressor is engineered for high-pressure industrial applications where standard compressed air systems are insufficient. Built with single-stage rotary screw technology, it delivers continuous and stable high-pressure air required for precision manufacturing and process-critical operations.

At 16 bar operating pressure, this compressor delivers 75 CFM (2.12 m³/min) as per standard performance data , making it suitable for mid-to-high capacity laser cutting systems and high-pressure industrial processes.

• High-pressure output up to 16 bar for specialized industrial applications

• Continuous-duty rotary screw design ensuring stable airflow

• Designed for process-critical systems requiring pressure consistency

• Robust construction for continuous industrial operation

• Compatible with advanced air treatment systems (dryer + multi-stage filtration mandatory)

• Used in sheet metal fabrication industries

• Machines:

  • 4 kW to 8 kW fiber laser cutting systems

• Function of compressed air:

  • removal of molten metal from cutting zone

  • improves cutting speed and edge finish

  • prevents slag formation and oxidation

• Technical requirement:

  • 16 bar pressure ensures sufficient kinetic energy at nozzle

  • lower pressure leads to poor cut quality and reduced speed

• Industrial fabrication plants with:

  • automated laser cutting systems

  • continuous sheet processing lines

• Application:

  • medium to high production cutting

  • multi-shift operation

• Used in:

  • beverage and FMCG packaging plants

• Application:

  • pre-blow air stage

  • actuator and control air

• Engineering constraint:

  • final blow requires 25–40 bar (booster required)

  • 16 bar used in intermediate stages

• Applications:

  • high-force clamping systems

  • pneumatic actuators requiring higher pressure

  • industrial air-jet cleaning

• Industries:

  • automotive component manufacturing

  • precision engineering

• Model: SJ RF30

• Power: 30 HP / 22 kW

• Capacity: 75 CFM / 2.12 m³/min

• Pressure: 16 Bar / 232 PSI

• Compressor Type: Fixed Speed Rotary Screw

This configuration is suitable for:

• fiber laser cutting systems (mid to high power range)

• high-pressure precision manufacturing applications

• industrial processes requiring stable 16 bar air supply

Not suitable for general-purpose compressed air applications.
